Enext RG/RO®

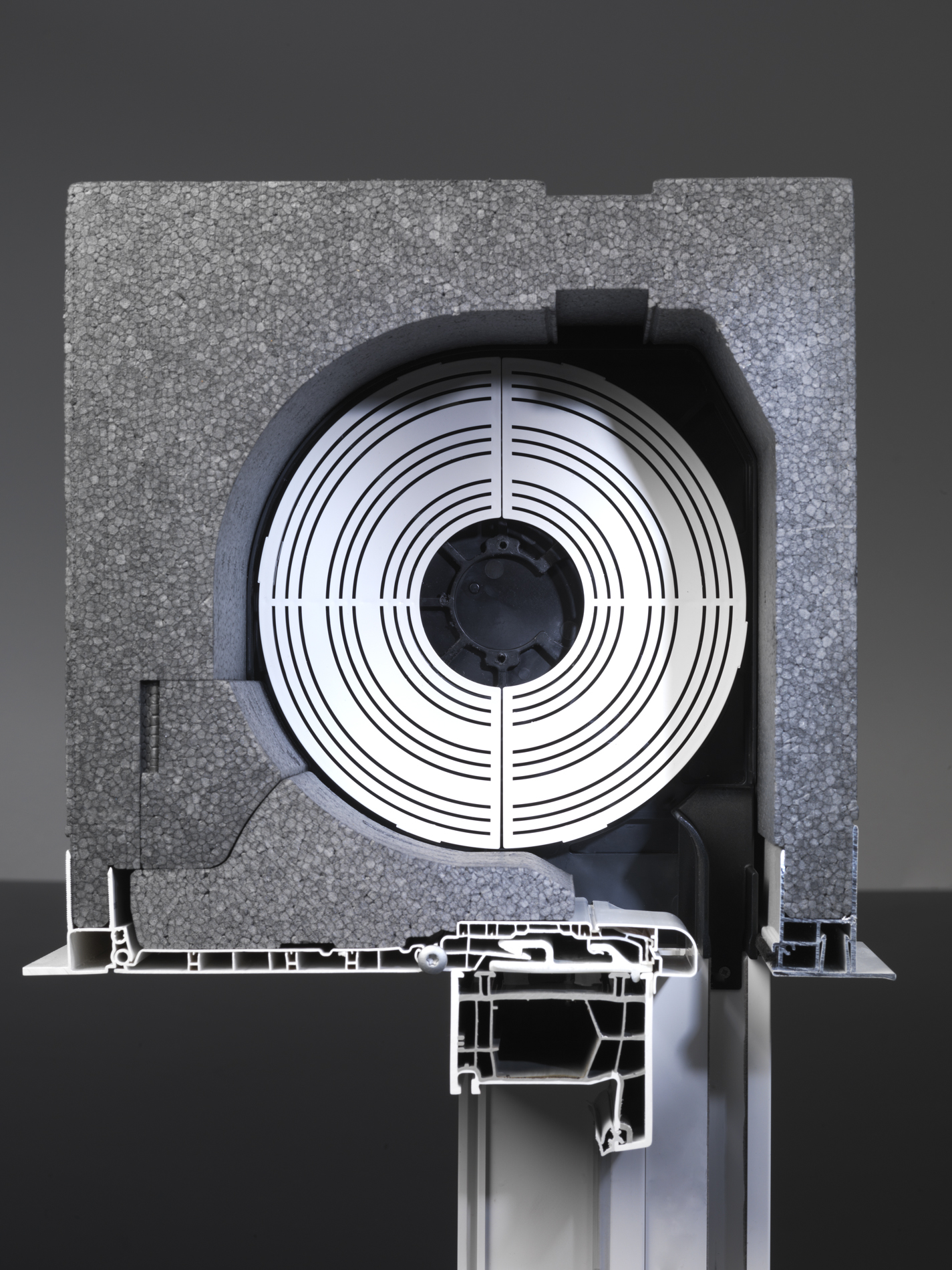

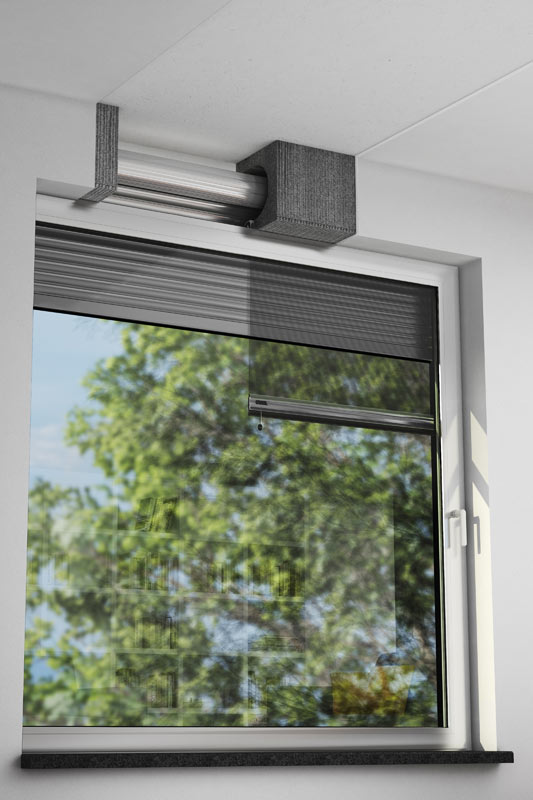

The pioneering Neopor top-mounted systems for new buildings – whether in brick or render. Optimised installation solutions facilitate precise installation, avoid visual flaws and ensure tight connections. The innovative insulating material Neopor increases energy-efficiency and stability. Numerous upgrade options provide customised convenience. Enext RG: the variant that is closed off internally, inspection from outside Enext RO: the variant that is open internally, inspection from inside
- installation in one step with the windows

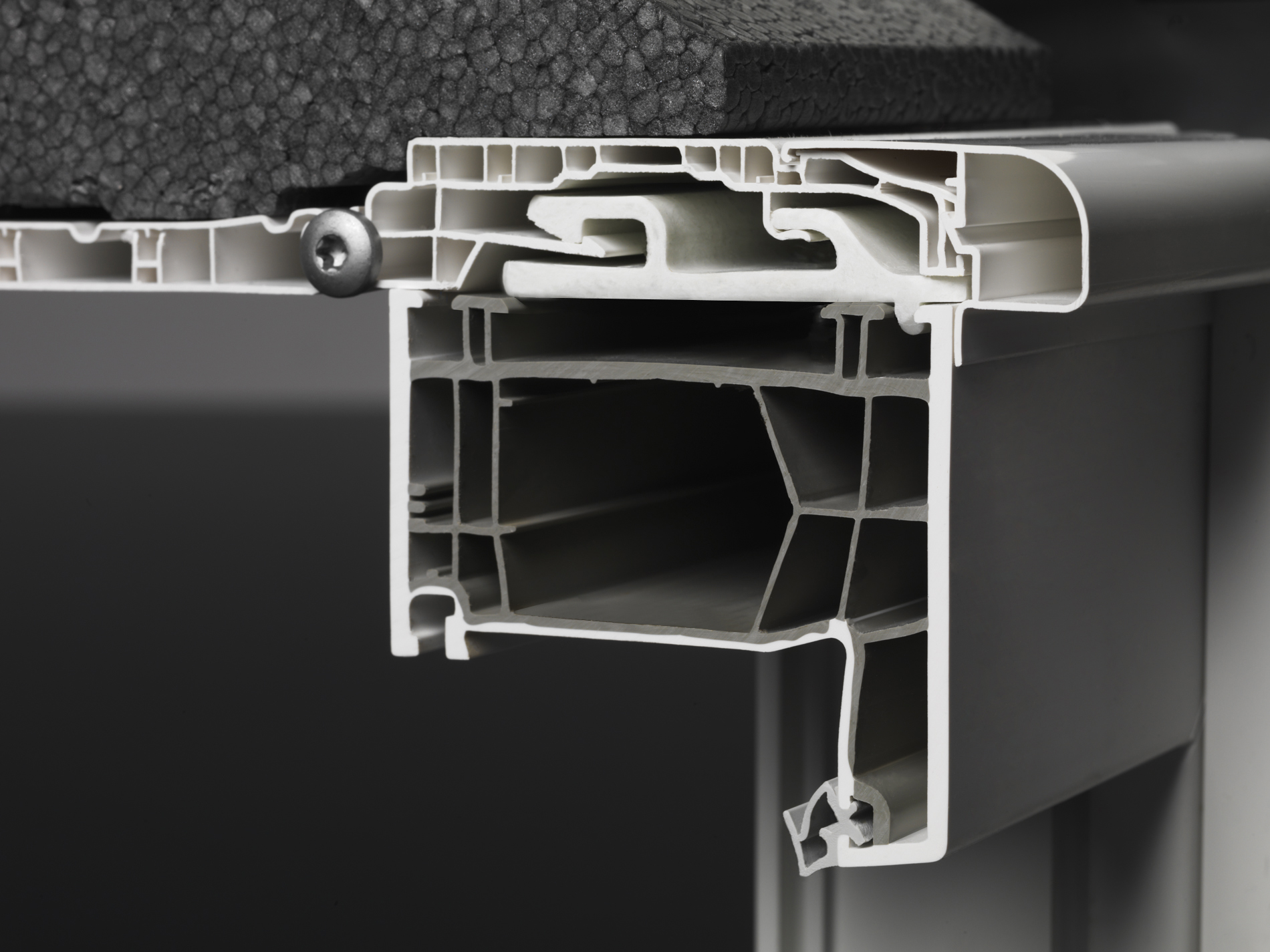

- one-click window adapters for precise, easy and faultless installation
- threaded inlet connections for simplified installation without disruptive attachment points
- tongue-and-groove inspection part: tight connection over the entire width

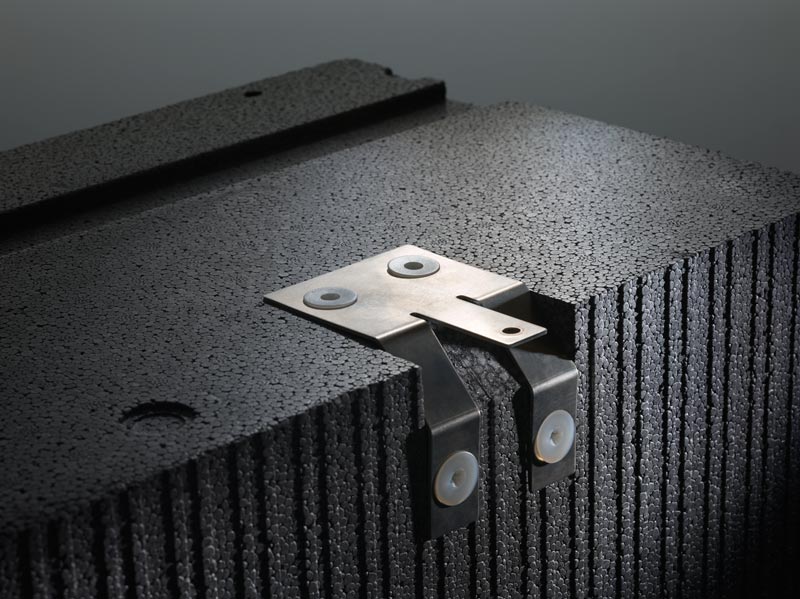

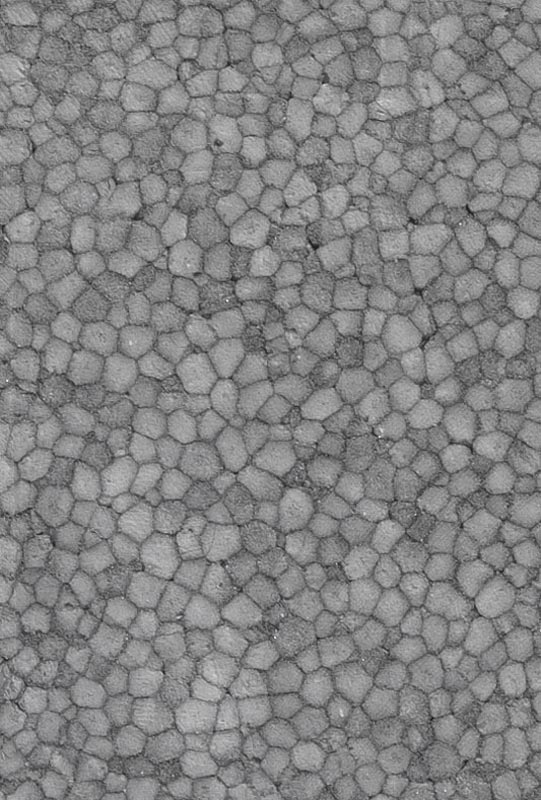

- Neopor high-performance insulating material: energy-efficient, moisture-resistant, dimensionally stable
- box surface optimised for render as per EIFS rendering guidelines
- side closures made from high-quality PVC without vents
- Optional features: 2-in-1 insect screen
- Operation: radio-controlled motor, comfort motor drive, crank mechanism or standard belt mechanism

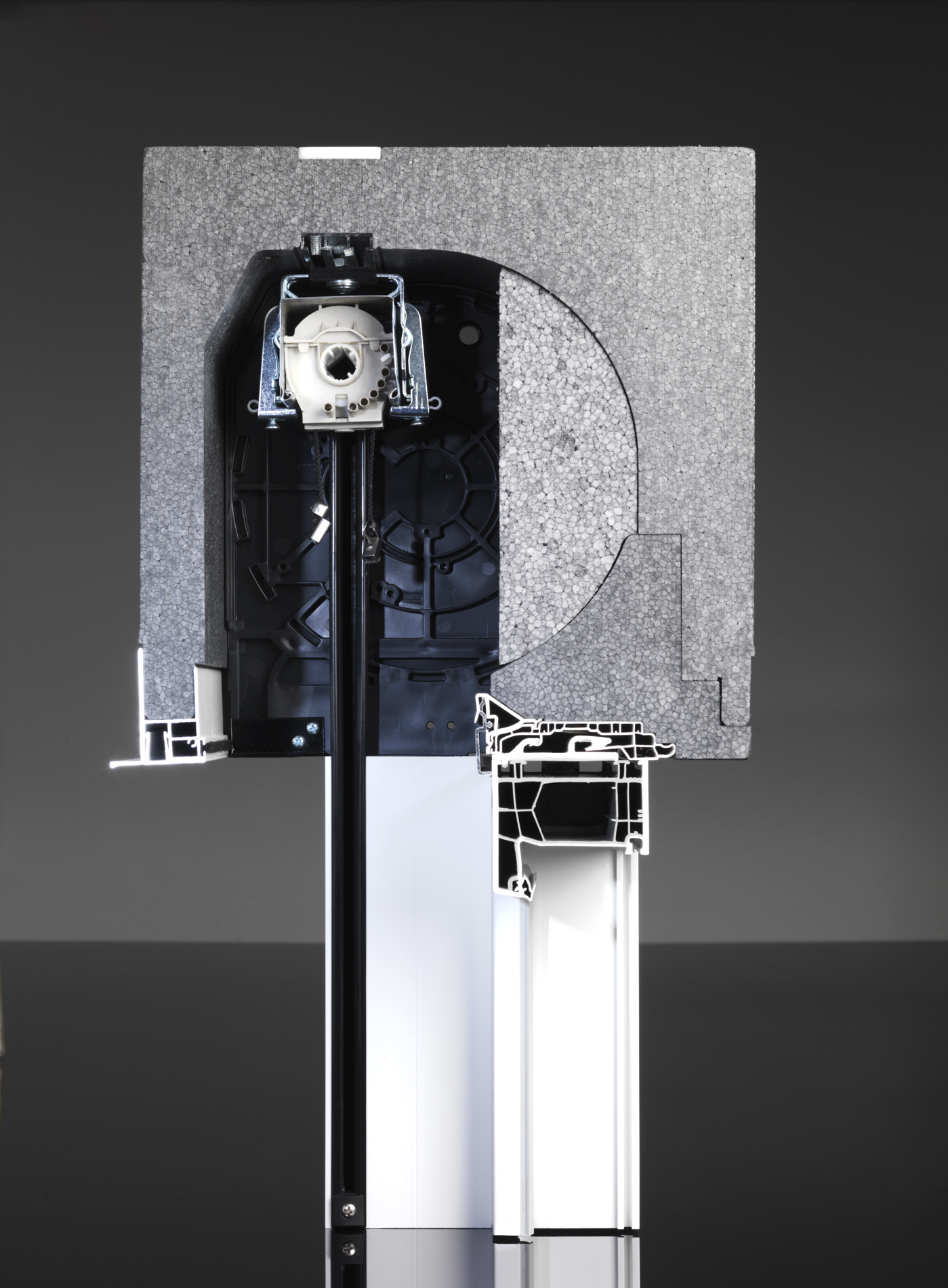

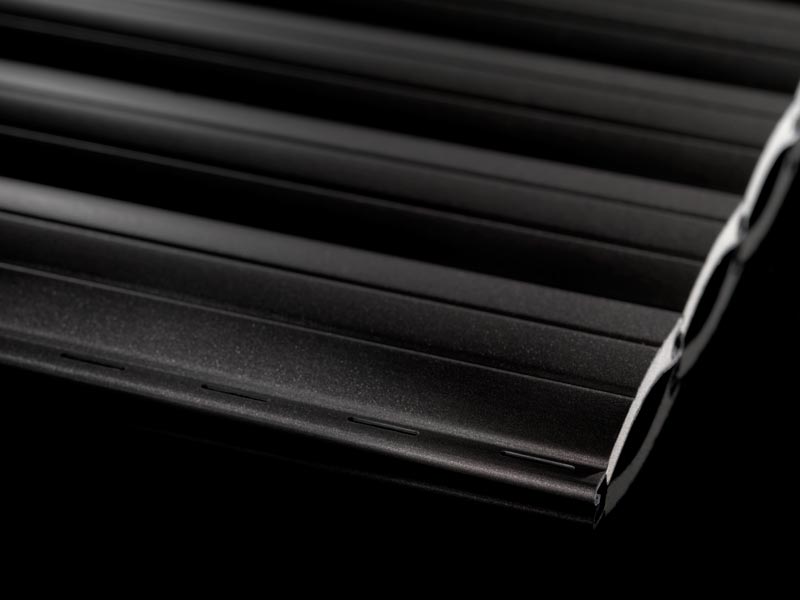

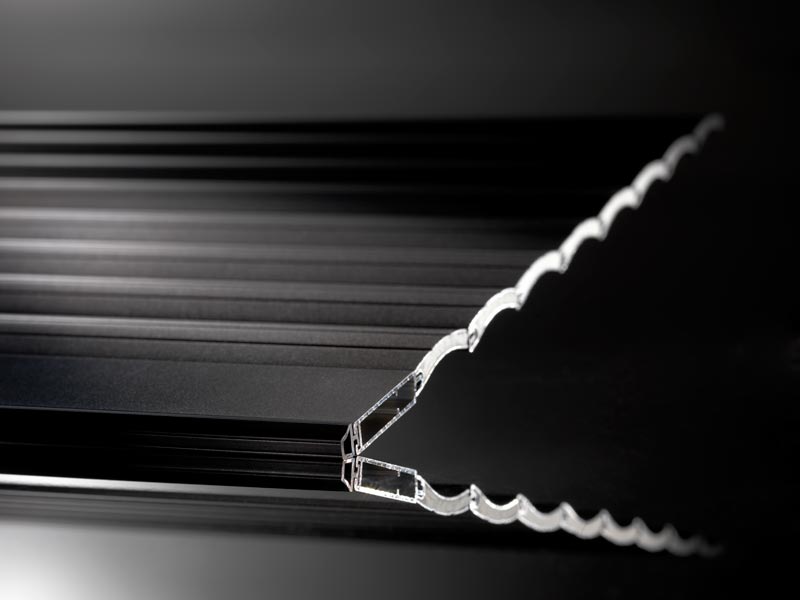

- Curtain: roller shutter CD 400 or external Venetian binds (RG only)
| Enext_RG, monolithic wall | 240/260 | 270/260 | 300/260 | 278/300 | 300/300 | 338/300 | 360/300 |
|---|---|---|---|---|---|---|---|
| Heat transfer coefficient, rated value Usb ≤ 0,85 | 0,66 | 0,52 | 0,46 | 0,52 | 0,50 | 0,41 | 0,40 |
| Surface temperature factor, rated value fRsi ≥ 0,70 | 0,80 | 0,80 | 0,80 | 0,79 | 0,79 | 0,84 | 0,78 |
| Thermal transmittance, rated value ψ ≤ 0,32 | 0,18 | 0,15 | 0,13 | 0,09 | 0,20 | 0,04 | 0,19 |
| Sound reduction index (dB), curtain up/down | 48/47 | 48/46 | 47/47 | 49/49 | 48/46 | 49/47 | 45/45 |
| stonework | WDVS | WDVS | WDVS | clinker | Monolithic | clinker | WDVS |
| Enext_RO, monolithic wall | 240/260 | 270/260 | 300/260 | 278/300 | 300/300 | 338/300 | 360/300 |
|---|---|---|---|---|---|---|---|
| Heat transfer coefficient, rated value Usb ≤ 0,85 | 0,74 | 0,61 | 0,55 | 0,60 | 0,57 | 0,50 | 0,48 |
| Surface temperature factor, rated value fRsi ≥ 0,70 | 0,73 | 0,72 | 0,72 | 0,70 | 0,71 | 0,70 | 0,70 |
| Thermal transmittance, rated value ψ ≤ 0,32 | 0,18 | 0,15 | 0,13 | 0,10 | 0,21 | 0,10 | 0,21 |
| Sound reduction index (dB), curtain up/down, flexible foam + heavy-duty foil insulation | 41/37 | 44/41 | 46/44 | 42/43 | 41/40 | 42/42 | 41/41 |
| Stonework | WDVS | WDVS | WDVS | clinker | Monolithic | clinker | Monolithic |
